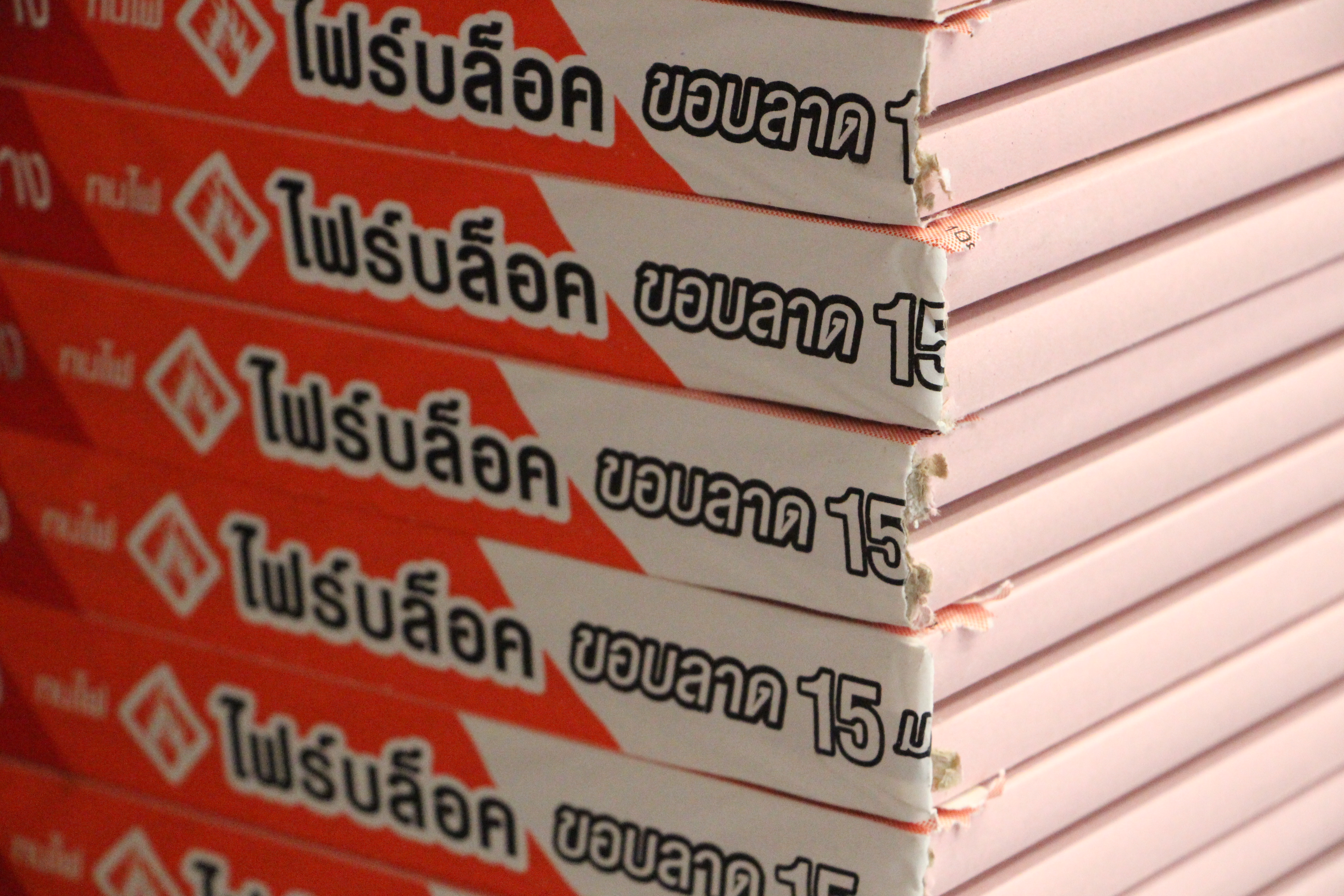

Gypsum Board SCG FireBloc for Ceiling and Interior Walls

Gypsum Board SCG FireBloc is fire resistance (fire tolerance from 1-4 hours), thermal insulation, sound absorption (35-60 decibel), durable, light weight, eco-friendly, nonhazardous, easy and quick to install.

Dimensions and Weight

• Gypsum Board SCG FireBloc with squared edge and tapered edge are in 1200x2400x9mm with 28.5kg.
• Gypsum Board SCG FireBloc with squared edge and tapered edge are in 1200x2400x15mm with 36.6kg.

Installation Tips

For Partition

• Screw length is determined by the thickness of the gypsum board with extra 10mm.
• Metal stud thickness should be more than 5.5mm.
• Vertical metal stud should set in the same direction of a partition.
• Width of partition should not be above 15m, if above use the expansion joint to prevent cracking.
• Leave 10mm gap between floor to prevent dampness.

For Ceiling

• Length of the concealed ceiling should not be longer that 15m. If not a 10mm. space must be left in conjunction with the expansion joint to prevent cracking.
• For the installation of both gypsum partition and ceiling. Install the ceiling first.
