Gypsum Board SCG Plus for Ceiling and Interior Walls

Gypsum Board SCG Plus is fire resistance, thermal insulation, sound absorption (35-60 decibel), durable, light weight (13% lighter than standard), eco-friendly, nonhazardous, easy and quick to install.

Dimensions and Weight

• Gypsum Board SCG Plus with squared edge and tapered edge are in 1200x2400x9mm with 15.5 kg.
• Gypsum Board SCG Plus with squared edge and tapered edge are in 1200x2400x12mm with 20.7 kg.

Installation Tips

For Partition

• Screw length is determined by the thickness of the gypsum board with extra 10mm.
• Metal stud thickness should be more than 5.5mm.
• Vertical metal stud should set in the same direction of a partition.
• Width of partition should not be above 15m, if above use the expansion joint to prevent cracking.
• Leave 10mm gap between floor to prevent dampness.

For Ceiling

• Length of the concealed ceiling should not be longer than 15m. If not a 10mm. space must be left in conjunction with the expansion joint to prevent cracking.
• For the installation of both gypsum partition and ceiling. Install the ceiling first.

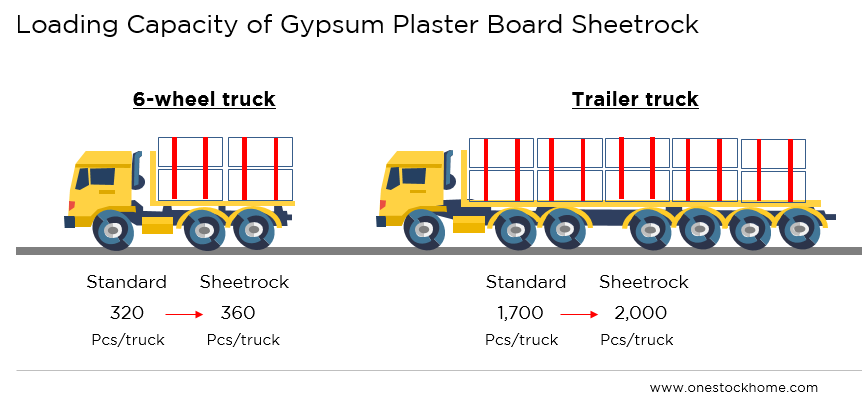

Loading Capacity of Gypsum Board SCG Plus Sheetrock
