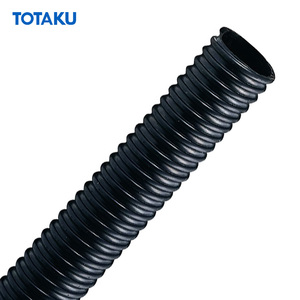

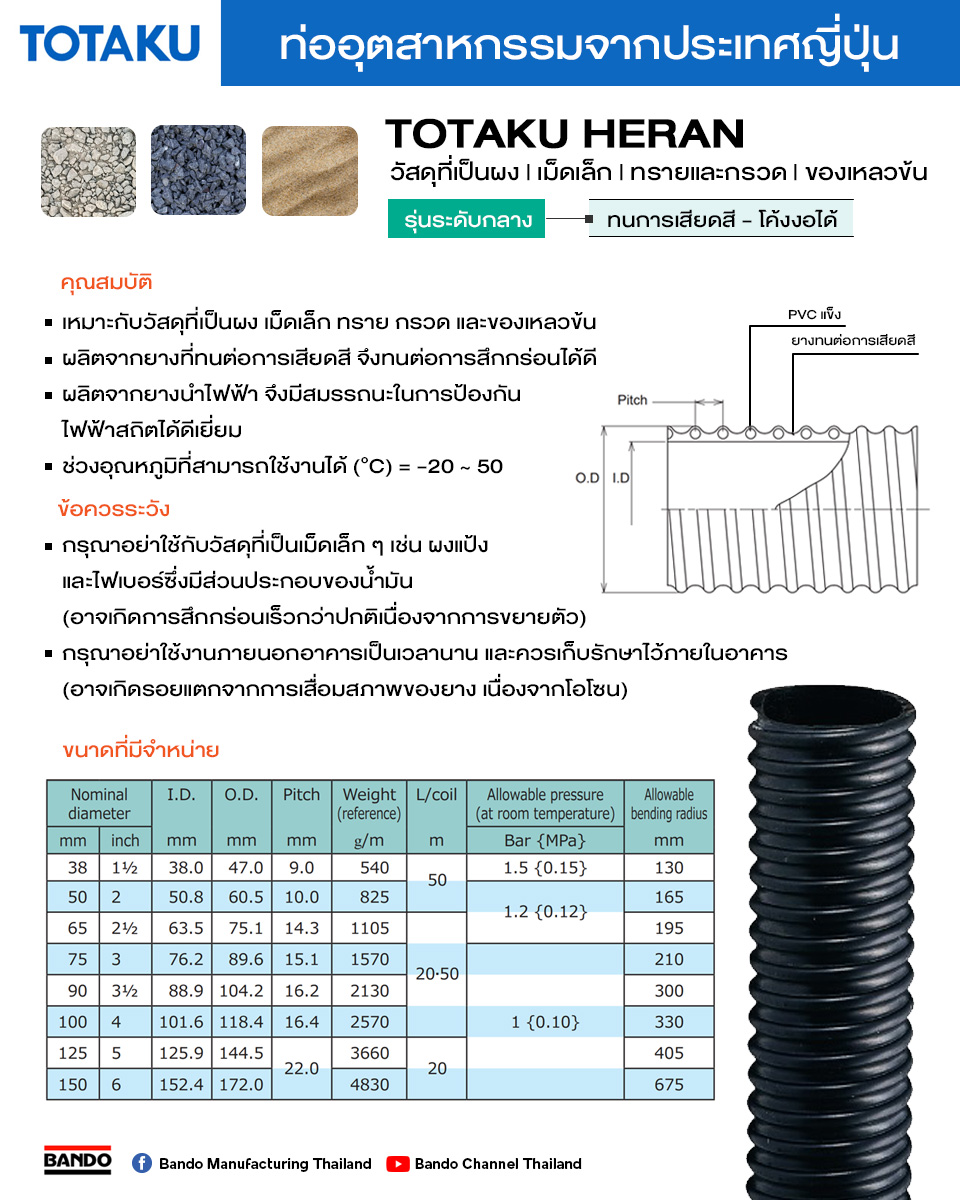

ท่อยางอุตสาหกรรม Totaku Heran

Nominal Diameter 38 mm 1 1/2 inches I.D. 38 mm O.D. 47 mm Pitch 9 mm L: 50 m/Coil

0.54 กก.

Nominal Diameter 50 mm 2 inches I.D. 50.8 mm O.D. 60.5 mm Pitch 10 mm L: 50 m/Coil

0.82 กก.

Nominal Diameter 65 mm 2 1/2 inches I.D. 63.5 mm O.D. 75.1 mm Pitch 14.3 mm L: 20 m/Coil

1.10 กก.

Nominal Diameter 75 mm 3 inches I.D. 76.2 mm O.D. 89.6 mm Pitch 15.1 mm L: 20 m/Coil

1.57 กก.

Nominal Diameter 90 mm 3 1/2 inches I.D. 88.9 mm O.D. 104.2 mm Pitch 16.2 mm L: 20 m/Coil

2.13 กก.

Nominal Diameter 100 mm 4 inches I.D. 101.6 mm O.D. 118.4 mm Pitch 16.4 mm L: 20 m/Coil

2.57 กก.

Nominal Diameter 125 mm 5 inches I.D. 125.9 mm O.D. 144.5 mm Pitch 22 mm L: 20 m/Coil

3.66 กก.

Nominal Diameter 150 mm 6 inches I.D. 152.4 mm O.D. 172 mm Pitch 22 mm L: 20 m/Coil

4.83 กก.
