From฿ 1,039.25/ Sheet
Expanded metal is commonly used to protect machine and build fence. It has various size that fits your requirement. Made of good quality steel. Some use case includes the likes of adding these materials replacing wiremesh for wall, this is to strengthening the surface.
List of all Expanded Metal products
found 38 item(s)Show products without price
found 38 item(s)
Start your experience withOneStockHomeMixed quality brands, guaranteed by Thai Industrial Standards
Show more
We deliver to every province in the country
View product
From฿ 560.75/ Sheet
From฿ 322.43/ Piece
From฿ 311.21/ Piece
From฿ 574.77/ Piece
From฿ 769.16/ Sheet
From฿ 2,521.50/ Sheet
From฿ 342.99/ Piece
From฿ 1,043.93/ Sheet
From฿ 435.51/ Sheet
From฿ 1,350.47/ Sheet
From฿ 1,171.03/ Piece
From฿ 593.46/ Sheet
From฿ 1,779.44/ Sheet
From฿ 3,063.55/ Sheet
From฿ 2,376.64/ Sheet
From฿ 1,884.11/ Piece
From฿ 548.60/ Sheet
From฿ 918.69/ Sheet
From฿ 3,233.64/ Sheet
From฿ 345.79/ Sheet
No longer sold
No longer sold
No longer sold
Showing 24 of 38 items
Show the last 14Questions
No question available
How much load can expanded metal carry, and how is it installed as walkway grating?
Expanded metal is made by slitting and stretching sheet metal into diamond openings that stay joined at the knuckles, making it stronger and lighter. The surface has high friction, and it is used for fences, overhead walkways and as construction mesh in place of tied rebar. Load capacity depends on thickness and span. Sample values at a 600 mm span are shown below.

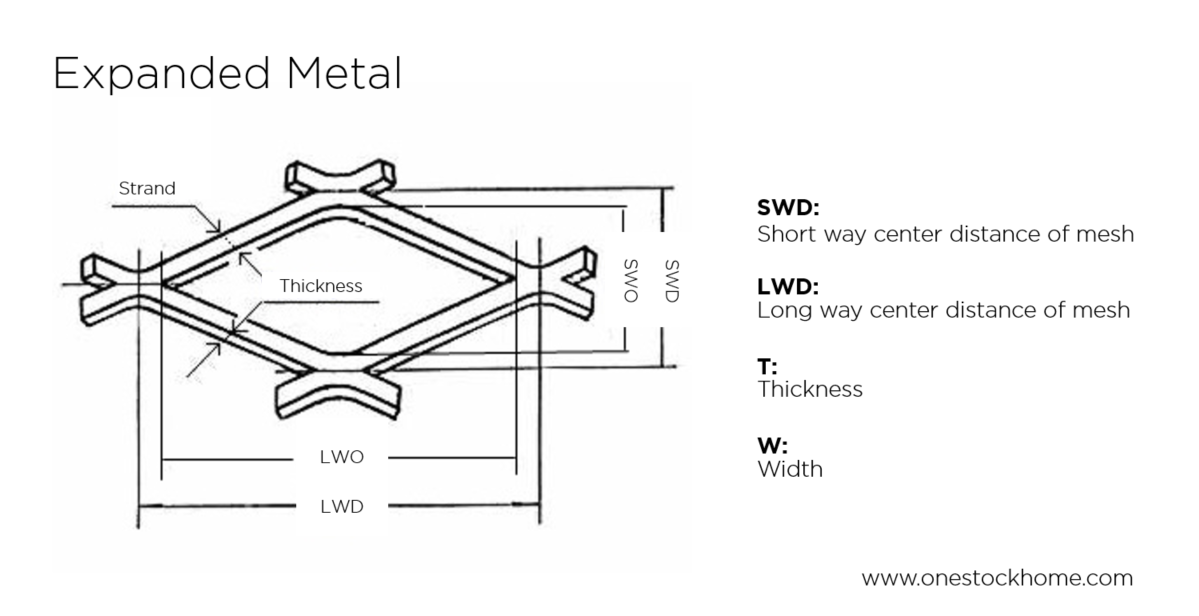

Model (JIS) | Mesh SWD x LWD (mm) | Thickness (mm) | Load capacity (kg/sq.m) | Weight of 4x8 ft sheet (kg) |
|---|---|---|---|---|
XS-31 | 12x30.5 | 1.2 | 8 | 6.0 |
XS-33 | 12x30.5 | 2.3 | 65 | 20.5 |
XS-43 | 22x50.8 | 3.2 | 67 | 23.0 |
XS-53 | 25x61 | 3.2 | 77 | 23.0 |
XS-63 | 34x76.2 | 4.5 | 124 | 30.0 |
- Lay adjoining sheets with the strands sloping in the same direction, and place the flat straight edge facing up.
- Bear the sheet ends on structural supports. Weld butted or lapped sheets together, or weld a support beneath the joint.
- Openings can be cut for pipes or structural members, and the cut edges should be edged with a welded bar.
- If clips are used to fix the sheets to steelwork, space them about 750 mm apart.
