From฿ 136.69/ Piece
Steel angle with holes (slotted angle) for building storage shelving and room partitions. Choose black or gray painted finishes in equal and unequal leg sizes. Buy slotted angle at factory prices from OneStockHome with delivery across Thailand.
Brands
List of all Steel Angle with Holes products
found 12 item(s)Show products without price
found 12 item(s)
Start your experience withOneStockHomeMixed quality brands, guaranteed by Thai Industrial Standards
Show more
We deliver to every province in the country
View product
From฿ 1.49/ Pieces
From฿ 166.36/ Piece
No longer sold
No longer sold
No longer sold
No longer sold
No longer sold
No longer sold
No longer sold
No longer sold
No longer sold
Questions
No question available

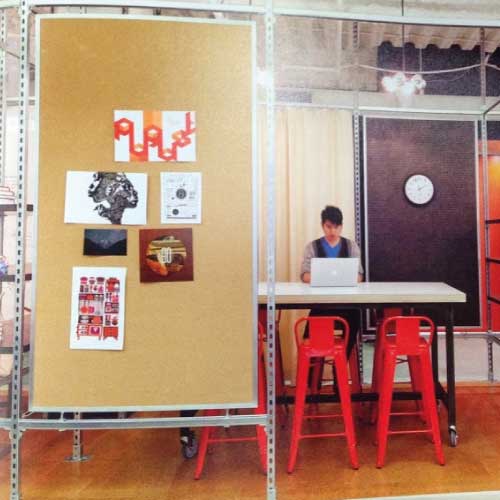

Designer adapted Steel Angle with Holes as the partition wall for meeting zone
What is slotted angle used for, and how much load can it carry?

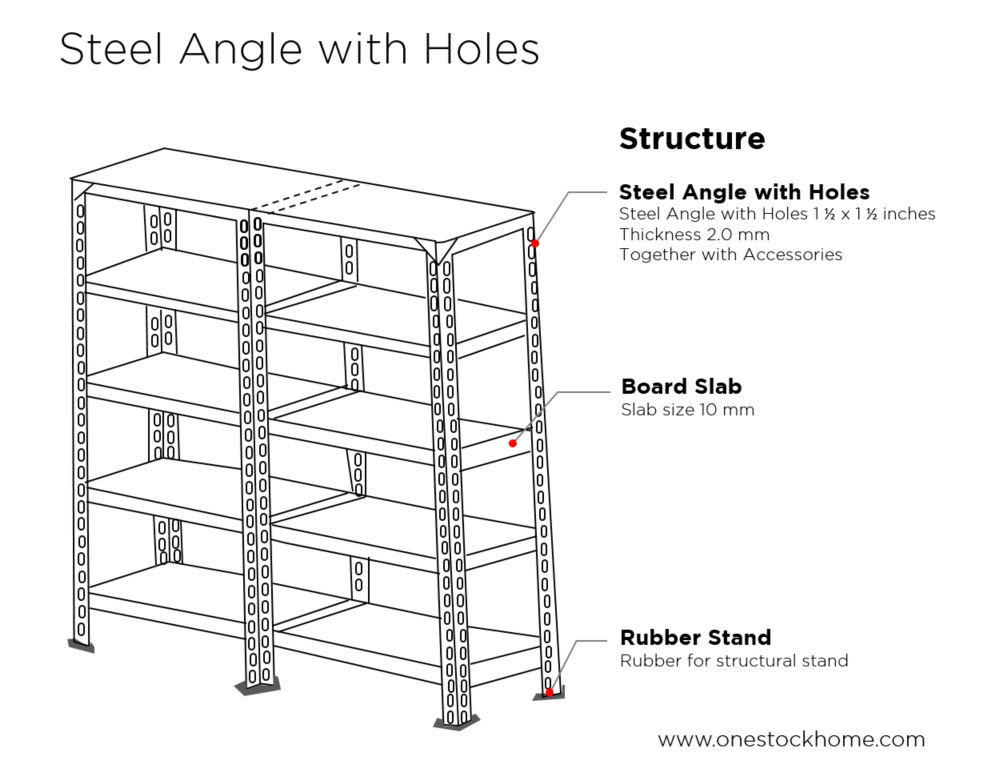

Painted slotted angle (to TIS 659-2529) is used to assemble storage shelving in warehouses, factories, homes and car parks, as well as trolleys, stairs, benches and drying racks. It assembles without welding or drilling and is easy to dismantle and modify.
It comes in two types, unequal-leg 2-1/4 x 1-1/2 inch and equal-leg 1-1/2 x 1-1/2 inch, in 1.8 and 2.0 mm thickness. Example column loads for the unequal-leg type (values from the manufacturer's table):
Column height (cm) | 1.8 mm thick (kg) | 2.0 mm thick (kg) |
|---|---|---|
100 | 750 | 800 |
125 | 620 | 700 |
150 | 450 | 550 |
175 | 200 | 350 |
200 | - | 150 |
The taller the column and the longer the beam, the lower the load it carries, so choose sizes and spans to suit the weight to be stored.
