Roof Truss

SCG Roof Truss uses high tensile strength steel, with anti corrosion coating. Designed with advanced engineering design software. 5 years installation warranty. All parts of roof truss steel is made to order from factory. Can ensure perfect installation

1 products Buying guide →

List of all Roof Truss products

found 1 item(s)Show products without price

found 1 item(s)

Show products without price

Do you need to use Roof Accessories?

Shop all 571 itemsShop Now

Roof Reflective Insulation

Start your experience withOneStockHomeMixed quality brands, guaranteed by Thai Industrial Standards

Convert BOQ to product ordersin just a few clickswith our automatic document-to-cart conversion system

Try adding products to cart from documents Convert BOQ to product orders

SCG

SCG Roof Truss

Item number 60954919

No longer sold

View product

Select the right Roof Accessories

Bestsellers

Purlin Galvanized

1 / 5

C-CO Reflective Insulation 60 m 8852422040346

฿ 1,947.12

SCG Prima Clip Lock

฿ 10.30

C-CO Dry Tech System 3 m 8852422081141

฿ 568.01

Turbine Ventilation for Metal Sheet Natural 1.5 m 24 inches

฿ 1,667.50

C-CO Flashing Tape 28 cm x 40 cm 8852422077298

฿ 114.65

Questions

No question available

SCG Roof Truss offers new standard of better roofing technology. The structure is made of high tensile steel sheet that meet the standard and its uniformity. You can ensure that the product is rust free due to the quality of the materials used. SCG offers 5 YEARS WARRANTY for the installation services.

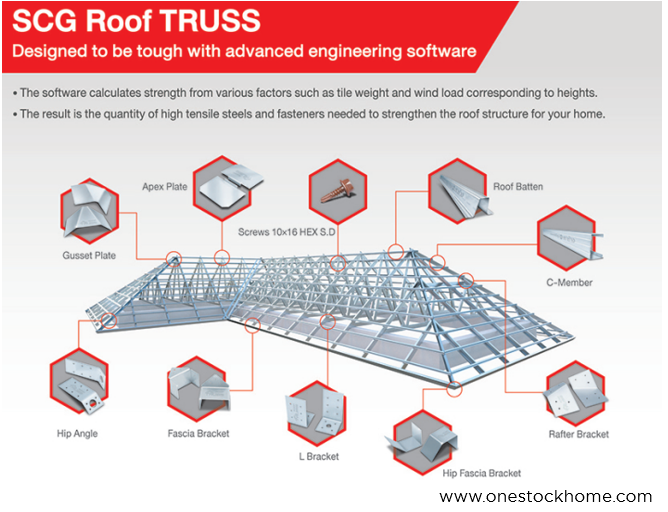

SCG Roof Truss is designed to be touch with advanced engineering software, it's the software that calculates the strength from various factors such as tile weight and wind load corresponding to the height.

Corrosion Process and Prevention

Rust the Cause of Structural Deterioration

SCG Roof Truss: Anti Corrosion Material

Factory coated with high quality anti corrosive metalic coating.

How does a prefabricated galvanized steel roof truss differ from ordinary steel roof framing?

Item	Prefabricated galvanized truss	Ordinary steel framing
Material	G550 high-tensile steel (yield strength not less than 5,500 ksc)	Black steel (yield strength 2,400 ksc)
Rust protection	Z220, Z275 or AZ150 coating; no rust paint needed	Needs rust-proof paint before and during installation
Production	Cut to the length actually needed, no offcuts	Standard 6 m lengths, offcuts trimmed on site
Average steel used	5-9 kg/sq.m.	12-18 kg/sq.m.
Fixing	Self-drilling screws, can be inspected	Electric welding, hard to inspect and the weak point where rust starts

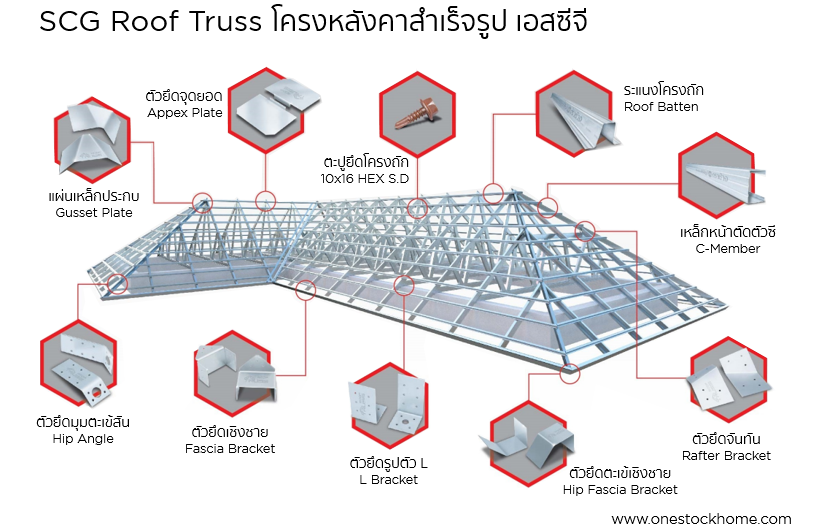

Z220 means 220 g/sq.m. of zinc and AZ150 means 150 g/sq.m. of aluzinc. The kit includes C members in 4 sizes, 0.8 and 1.0 mm thick, galvanized battens and more than 50 installation accessories.
