Galvanized (GI) C channel, cold-formed from pre-galvanized coil, so it resists rust without priming the whole length. Used for roof purlins and frames. 3 to 6 inch, 1.5 to 3.2 mm thick, 6 m lengths, mostly TIS. Check today's prices and order site delivery at OneStockHome.
Categories
Questions
What is galvanized C channel?

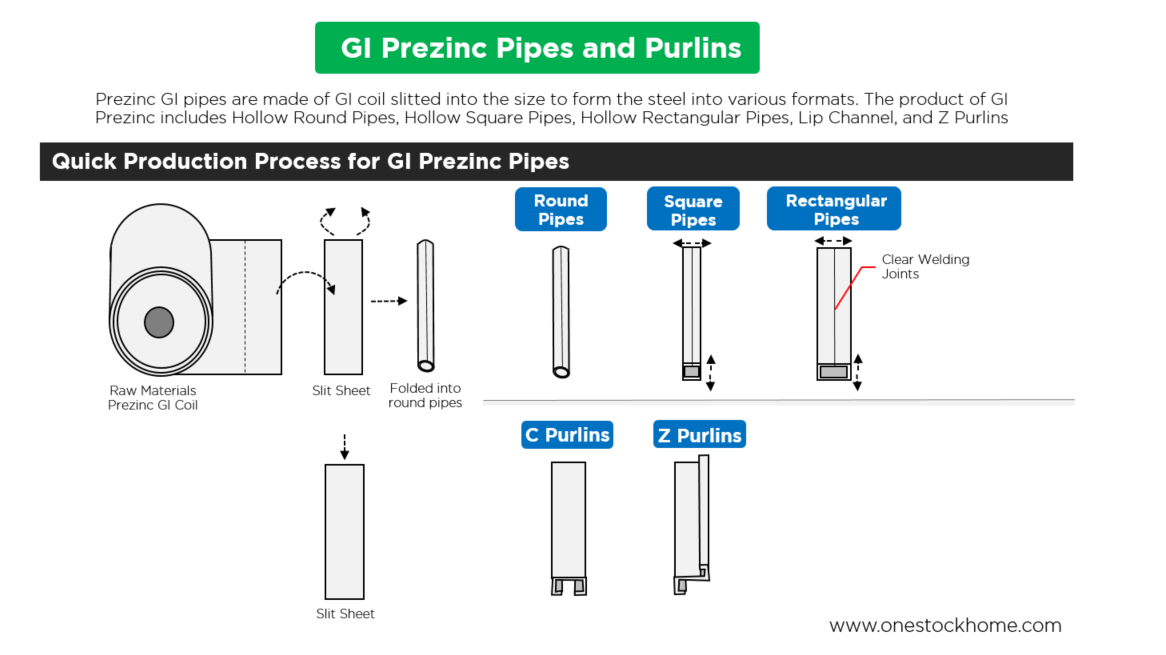

Galvanized (GI) C channel is cold-formed from coil that is already zinc-coated (pre-galvanized); it is not hot-dip galvanized after forming. The surface resists rust without priming the whole length; only cuts and welds need zinc-rich paint. It is used for roof purlins, rafters, roof frames and wall frames, in 6 m lengths.
Galvanized C channel sizes, thicknesses and weights
Prices are today's price per length. The 1.5 mm item has an actual thickness of 1.3 mm.
Size | Finish | Thickness (mm) | Weight per 6 m (kg) | kg/m | Today's price per length |
|---|---|---|---|---|---|
GI | 1.5 (actual 1.3) | 10.6 | 1.77 | ||
GI | 1.7 | 13.2 | 2.2 | ||
GI | 2.3 | 17.5 | 2.92 | ||
GI | 1.5 (actual 1.3) | 13.3 | 2.22 | ||
GI | 1.7 | 16.2 | 2.7 | ||
GI | 2 | 19.4 | 3.23 | ||
GI | 2.3 | 21.8 | 3.63 | ||
GI | 3.2 | 30 | 5 | ||
GI | 2.3 | 24.2 | 4.03 | ||
GI | 3.2 | 33.3 | 5.55 | ||
GI | 2.3 | 27 | 4.5 | ||
GI | 3.2 | 37 | 6.17 |
Black vs galvanized C channel
Black C channel | Galvanized (GI) C channel | |
|---|---|---|
Surface | Bare steel, no rust protection | Zinc-coated coil (pre-galvanized) |
Before use | Anti-rust primer, then finish paint | Zinc-rich paint on cuts and welds only |
Thicknesses in stock | 1.6 to 4.5 mm | 1.5 to 3.2 mm |
Best for | Work that will be painted anyway, heavier sections | Roof frames, less anti-rust painting |
